Precision engineering applied to performance. Every LR-01 component has been designed, simulated and validated by our team.

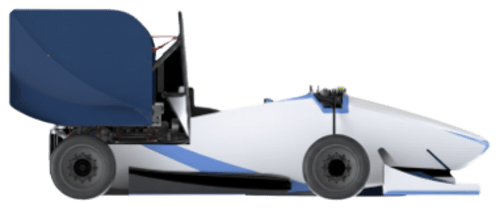

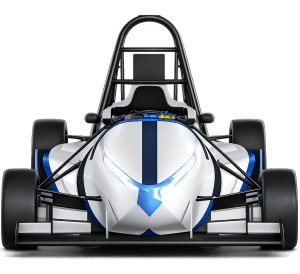

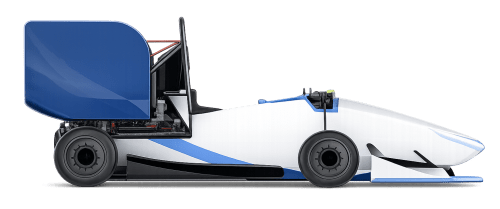

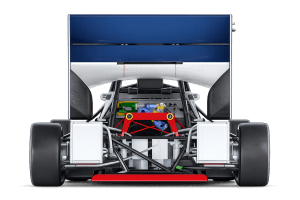

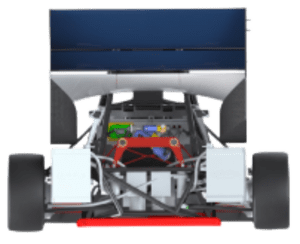

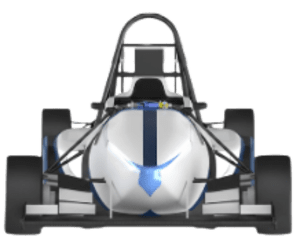

Vehicle Overview
LR-01 Performance Specs
Technical analysis of the single-seater - 2026 season
5.0 s
0-100 KM/H
110 KM/H
Top Speed
220 KG
Total Weight
Technical Data Sheet
Wheelbase
1530 mm
Track Width
1200 mm
Peak Power
80 kW
Battery Voltage
400 VDC
Max Torque
230 Nm
Brake System
4-Piston Calipers
Core Subsystems
Aerodynamics & Body
CFD analysis and carbon fiber manufacturing focused on maximizing downforce and thermal efficiency.
- Drag Coefficient: 1.2
- Material: Carbon Fiber 3k
HV Powertrain
High-voltage energy management with a custom battery pack based on Li-Ion cells and an in-house BMS.
- Max Voltage: 400V
- Capacity: 6.8 kWh
Vehicle Dynamics
Suspension geometry optimization and telemetry analysis aimed at sharper traction through corners.
- Tires: Hoosier 10"
- Suspension: Double Wishbone
- Motor: EMRAX 208 PMSM
Electronics & Control
Vehicle Control Unit programmed in C++ with CAN Bus communications and IoT sensor integration.
- MCU: STM32 Family
- Network: CAN FD
- Inverter: emDrive H300
